Switch Industrial MS100T/G
- Autoadaptación de 10/100/1000 Mbps (Auto-MDI/MDI-X)
- Compatible con IEEE 802.3 para 10BaseT
- Compatible con IEEE 802.3u para 100BaseT(X)
- Compatible con IEEE 802.3z para 1000BaseT
- Compatible con IEEE 802.3x para control de flujo
- Protección contra tormentas
- Temperaturas de trabajo: -40~85 °C
- Conmutadores Ethernet no gestionables de 5/8/16 puertos con montaje en carril DIN
- Modelos:

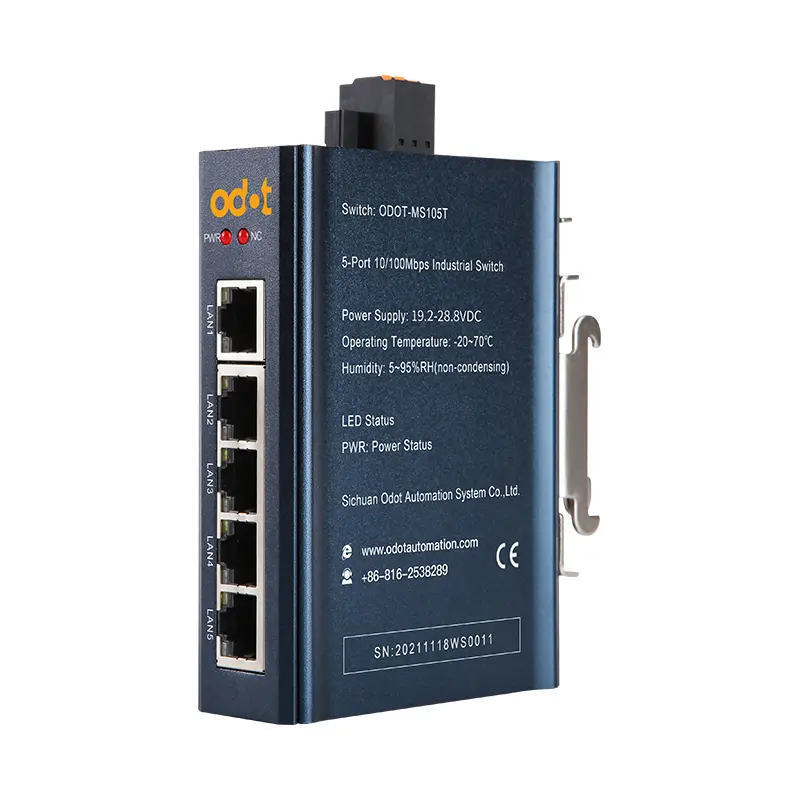

ODOT-MS105T: 5 puertos 10/100 Mbps, montaje en carril DIN de 35 mm

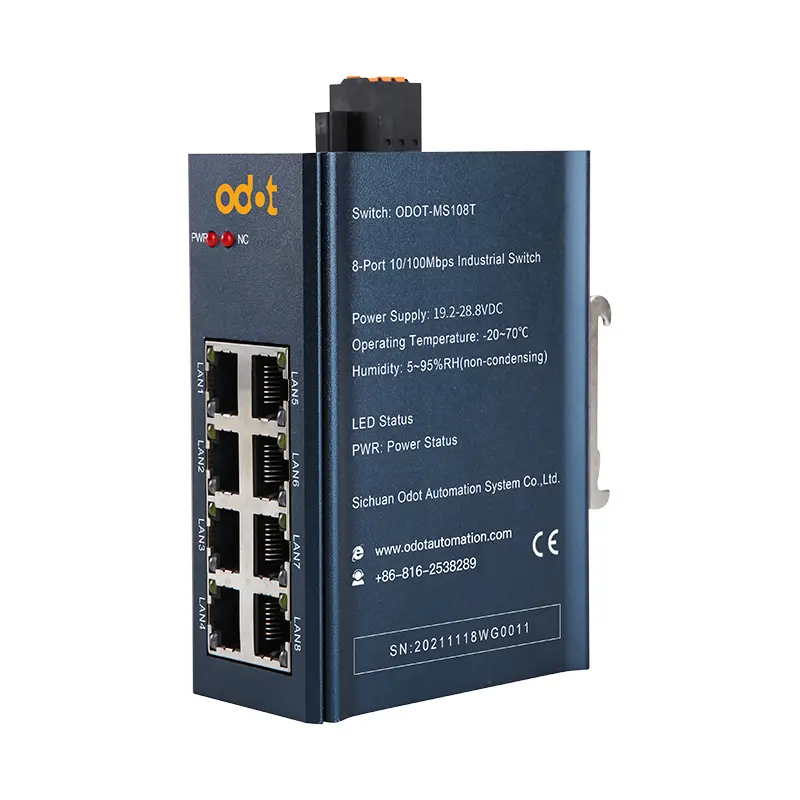

ODOT-MS108T: 8 puertos 10/100 Mbps, montaje en carril DIN de 35 mm
ODOT-MS116T: 16 puertos 10/100 Mbps, montaje en carril DIN de 35 mm Riel DIN
ODOT-MS105G: 5 puertos 10/100/1000 Mbps, riel DIN de 35 mm
ODOT-MS108G: 8 puertos 10/100/1000 Mbps, riel DIN de 35 mm
|
ODOT-MS105T/G |
ODOT-MS108T/G |
ODOT-MS116T |
|
|
Supports |
IEEE 802.3/802.3x/802.3u |
||
|
Input Voltage |
Way 1: 19.2～28.8V DC |
Way 2: 19.2～28.8V DC |
Way 3: 19.2～28.8V DC |
|
Installation |
35mm Din-rail |
||
|
MAC address |
ODOT-MS105T/MS108T 2K |
ODOT-MS116T 16K |
|
| ODOT-MS105G 2K | ODOT-MS108G 4K | ||
|
Supports |
Auto-negotiation 10/100Mbps、10/100/1000 Mbps Half/full duplex、Auto MDI/MDIX |
||
|
WTP |
-40～85 ℃ |
||
|
Working Humidity |
5～90%(non-condensing) |
||
|
Supports |
Broadcast storm protection |
||
| Supports |
Anti-reverse connection protection |
||
|
Warranty |
3 years |
||
|
ODOT-MS105T/G |
ODOT-MS108T/G |
ODOT-MS116T |
|
|
MAC address table size |
2K/4K |
16K |
|
|
Packet buffer size |
512bit |
4MB |
|
|
Interface |
RJ45 port：10/100BaseT(X)self-detection，MID/MDIXself adaption |
||
|
Operation Enviroment |
Temperature：-20～85 ℃、 Humidity：5～90%(non-condensing) |
||
|
Storage |
Temperature：-55～125 ℃、Humidity：5～90%(non-condensing) |
||
|
Power |
19.2V～28.8V DC（suggested 24V） |
||
|
Overcurrent Protection |
1.25A |
||
| Anti-reverse connection protection |
Supports Anti-reverse connection protection |
||
|
ODOT-MS105T/G |
ODOT-MS108T/G |
ODOT-MS116T |
|||
|
Operaion Voltage |
19.2～28.8V DC |
||||
|
Working Temperature |
-40～85 ℃ |
||||
|
Storage Temperature |
-55～125℃ |
||||
|
Overcurrent protection |
1.25A |
||||
|
Power Consumption |
200mA@24V |
300mA@24V |
500mA@24V |
||
|
Humidity |
5～95%（non-condensing） |
||||
|
Warranty |
3 years |
||||
|
ESD |
2KV |
||||
|
ODOT-MS105T/G |
ODOT-MS108T/G |
ODOT-MS116T |
|||
|
Operation voltage |
19.2～28.8V DC |
||||
| Working Temperature |
-40～85 ℃ |
||||
| Storage Temperature |
-55～125℃ |
||||
| Overcurrent protection |
1.25A |
||||
|
Overall power consumption |
100T:50mA@24V 100G:100mA@24V |
100T:80mA@24V 100G:140mA@24V |
200mA@24V |
||
|
Working Humidity |
5～95%（non-condensing） |
||||
|
Warrany |
3 years |
||||
|
ESD |
2KV |
||||
MS-105
